TCG2P 12 Cal EZ Lift PPE Kits

$795.36

SKU: TCG2P-CKE-EL-NB-S

Ships: 10 business days

Size:

Size
Color:Navy Blue
Quantity:

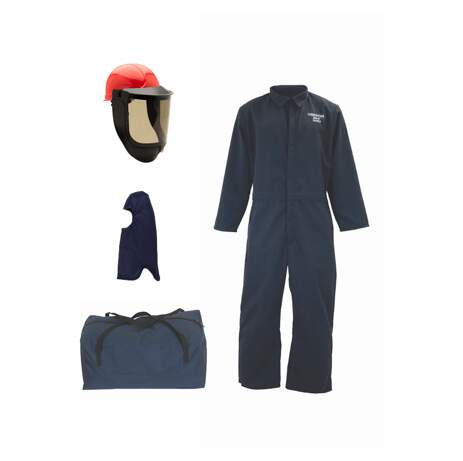

  • Arc flash suit set comes equipped with an EZ Lift True Color Grey (TCG™) shield and hard cap, balaclava, coveralls, and storage bag

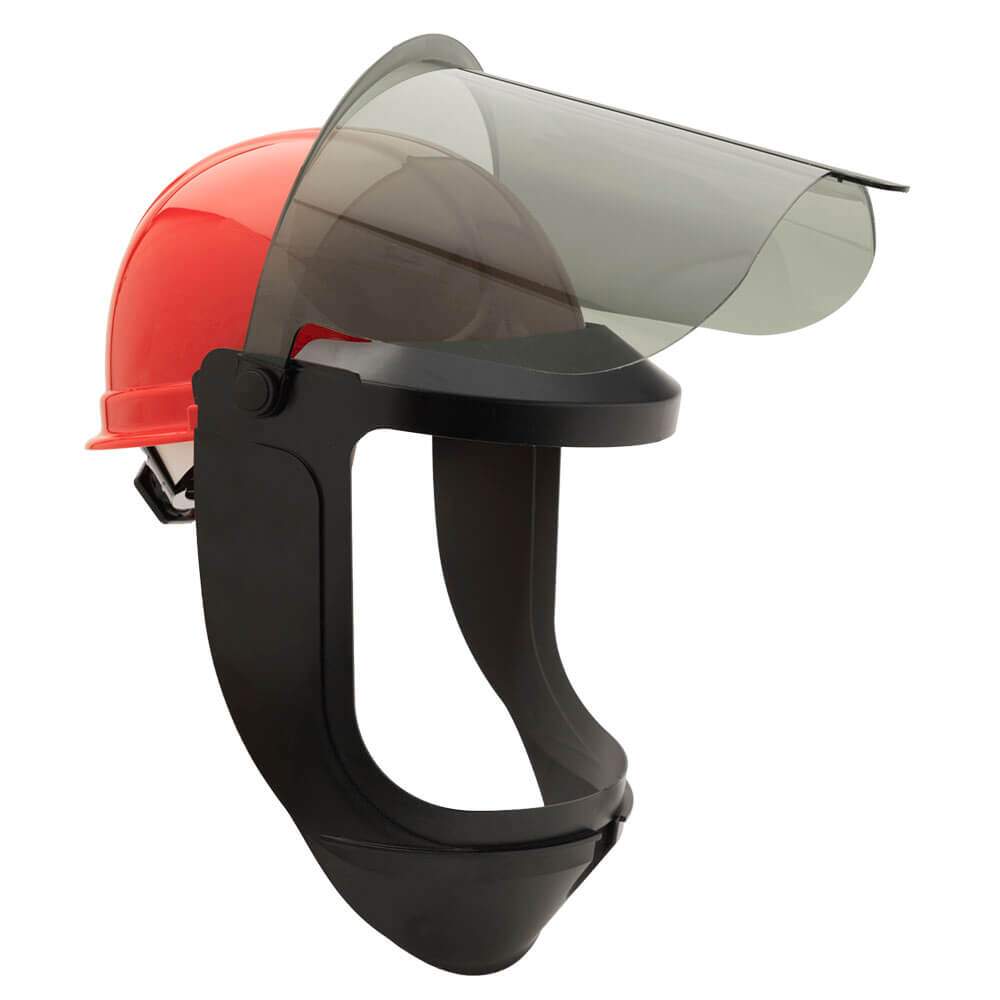

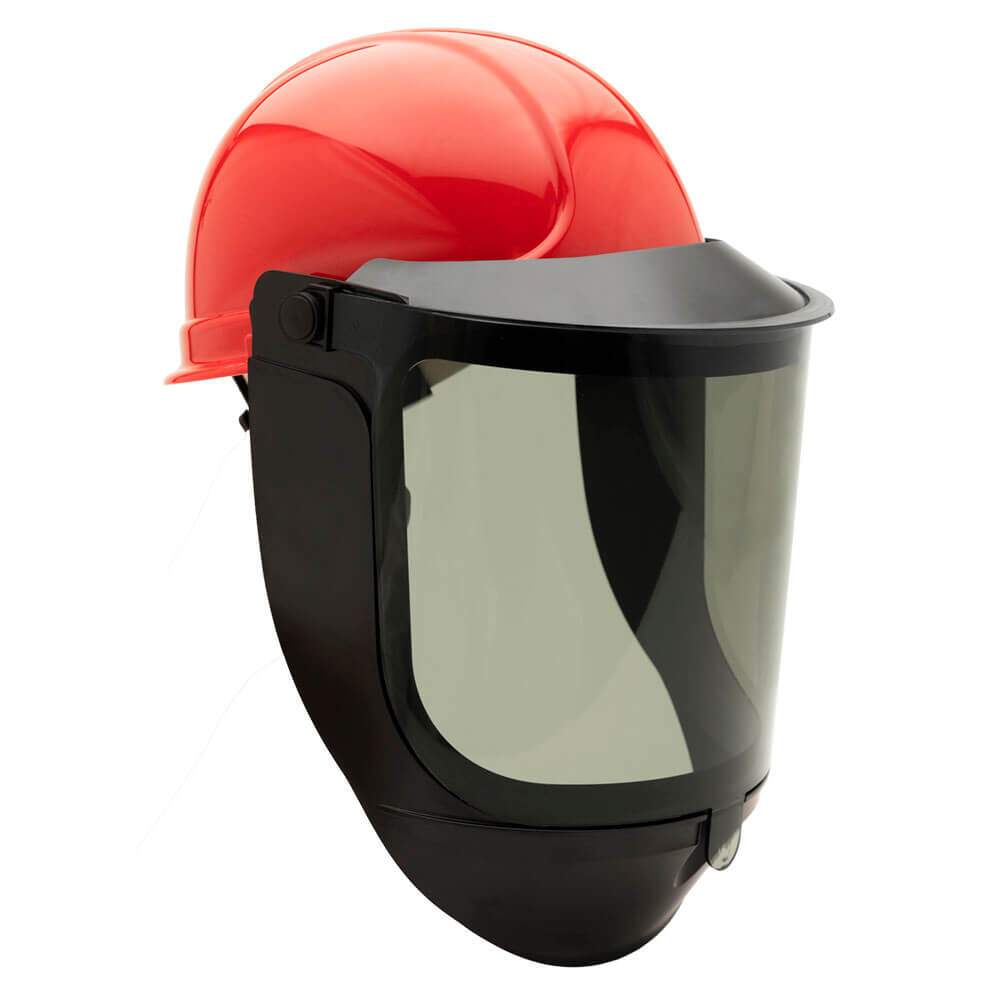

  • Unique face shield design allows user to easily lift face shield up when pausing electrical work tasks
  • Balaclava and coveralls are made from an inherently flame resistant fabric

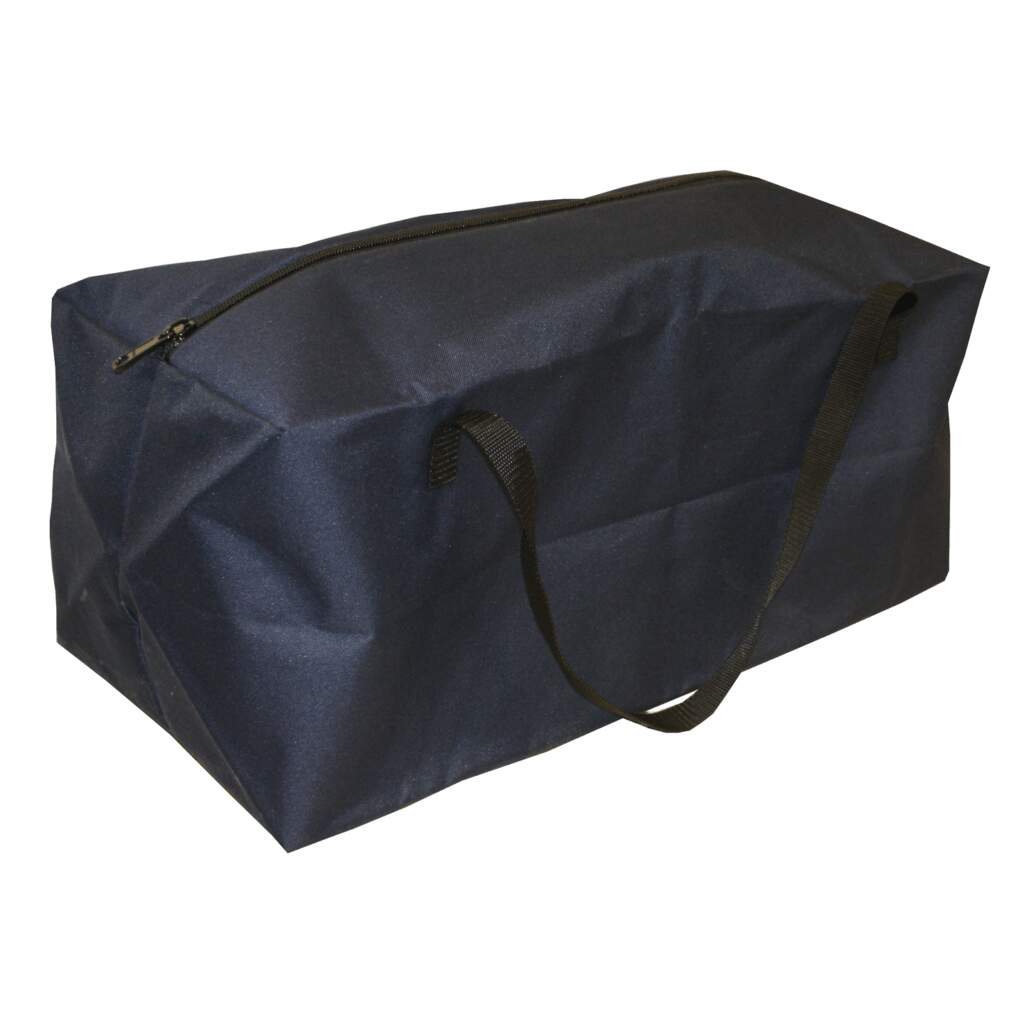

  • Durable storage bag helps to keep your arc flash kit dry and protected from the harshest of elements

Technical Specs:

  • Arc flash ppe category: 2
  • Arc rated: Yes
  • Arc rating atpv: 12 cal/cm²
  • Bootie size: Not Included
  • Flame resistant: Yes
  • Fr arc standards: NFPA 70E|CSA Z462|ASTM F1506|ASTM F1959|ASTM F2178|ANSI Z87.1|ANSI Z89.1|ANSI 125
  • Garment material: Inherently FR Blend|FR Treated Cotton
  • Hard cap material: Polycarbonate
  • Hard cap style: Hard Cap US
  • Kit includes: Hard Cap with Face Shield|Coverall|Balaclava|Storage Bag
  • Product category: Arc Flash and FR
  • Product sub category: Arc Flash Kits
  • Special features: EZ Lift Face Shield, True Color Grey (TCG™)
  • Window coating: Anti-Scratch|Anti-Fog
  • Window material: Polycarbonate

Tags: 12 Cal Arc Flash Kits, Arc Flash and FR, Arc Flash Kits, Arc Flash PPE Category: 2

Garment & Glove Sizing Chart

Worker Body Measurement: The workers actual measurements determined using a fabric measuring tape.
Oberon Coats, Bib-Overalls, Coveralls: Garment dimensions are larger than the User’s measurements to allow space for movement.

Arc Flash Apparel Measuring Instructions


1.Use a Fabric Measuring Tape

Chest: Measure around the chest just under the arms and across the shoulder blades.

Waist: Measure around the natural waistline.

Height: Measure the total height of the worker. You can tape one measuring tape to a wall and have the worker stand up straight against it.

2. Select the Size

After measuring the worker select the size using the tables above. Each of these numbers represent the maximum measurement per size. Always round up and use the larger of either Chest or Waist.

3. Select the Height

All suits are sold as a Regular size. Order bib-overalls for adjustable height. Short, Tall and Extra Tall sizes are custom Made to Order. Regular Standard size is 5’10” to 6’1”. Workers under 5’8” or over 6’4” need custom sizes.



Measurement Directions:

Neck: Measure around the base of your neck; round up to the next half-inch.

Chest: Measure around your chest, under the arms, and across the shoulder blades, over a shirt. If stomach is larger than chest; choose the larger size.

Waist: Measure around your waist at the level you normally wear your pants, over a shirt.

Hip: Standing with feet together, measure around the widest part of your hips, parallel to the floor.

Inseam: Measure a good-fitting pair of pants along the inseam, from crotch seam to bottom edge of cuff.

Sleeve: Bend arm and place fist on hip. Measure from center back of your neck, across shoulder, and down arm to elbow and then to your wrist. This is your sleeve length.

For working garments, measure liberally to find your size, as you need freedom of movement.



Arc Flash Glove Measuring Instructions

Step 1: Measure around the hand at the fullest part.

Step 2: Measure from the tip of the middle finger to the base of the hand.

Step 3: Use the LARGEST of these two measurements for the correct size glove.

Step 4: The number of inches/centimeters measured equals the size of the glove.
